Corsair AIO improve equipment & Tips on how to set up

Final Up to date:

Corsair makes loads of outstanding elements, from AIOs to RAM, you may be certain you’re buying the perfect of the perfect. Nevertheless, generally one thing’s lacking, and also you simply want that additional cherry on high to make it excellent. Nicely, that’s the place the AIO improve equipment is available in.

Corsair has just lately designed an LCD Capellix AIO CPU cooler, and we reviewed it close to launch a couple of months in the past. This AIO cooler can understandably set you again a reasonably penny, because it’s actually a 480P LCD display packed onto considered one of Corsair’s coolers, which we’ve all come to like over time. That’s not all, nonetheless, as the brand new LCD cooler does include revised Corsair ML120 ELITE RGB followers.

Fortunately, Corsair has made an LCD improve equipment out there to buy, that turners your regular AIO cooler into an LCD toting magnificence.

What’s within the field?

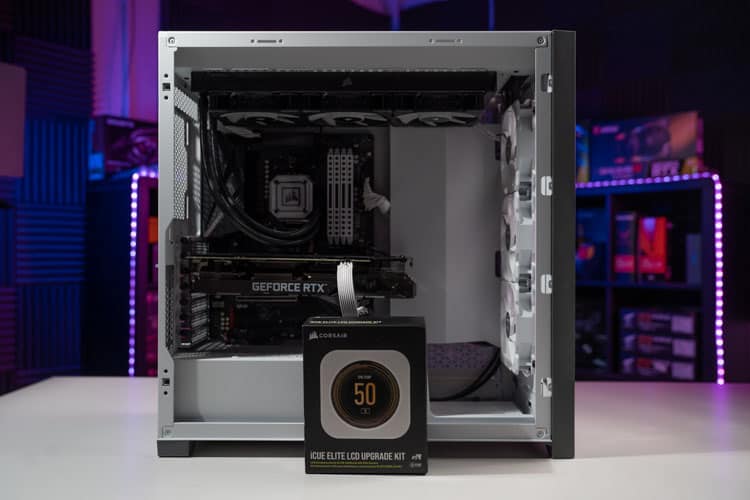

The field accommodates just a few gadgets, however they’re all of the bits you’ll have to efficiently carry out the LCD improve in your Capillex Elite CPU cooler.

  • Elite LCD Module
  • 4x Magnetic Mounting Screws
  • USB Y-Splitter
  • Guarantee/Security Leaflet

LCD display specs

The LCD display is a customized sq. 2.1” IPS LCD show, with a decision of 480×480 pixels. This ultra-bright 600cd/m2 backlit display options 24BIT full coloration at 30FPS. This little display packs a punch.

What does the LCD display do?

The LCD display serves a couple of features, considered one of which is displaying system data like CPU temperature, CPU load, and RAM temperature. All this information is accompanied by a plethora of pre-configured animations made by Corsair, you possibly can obtain extra by means of Corsair’s ICUE software program.

It’s not simply helpful data you possibly can show entrance and heart in your fancy PC construct. We determined we wished a picture of a Capybara, in order that’s what we did. You’ll be able to obtain and show any picture or GIF you want on this LCD display.

capybara corsair


Please observe: The ELITE LCD Improve Package is barely suitable with ELITE CAPELLIX liquid coolers:

Tips on how to set up the LCD improve equipment.

Now that we’ve got all of the compatibility data out of the best way, we’re going to stipulate methods to set up the LCD improve equipment onto your current Corsair AIO.

Uninstall your previous cooler’s emblem and diffusion plates

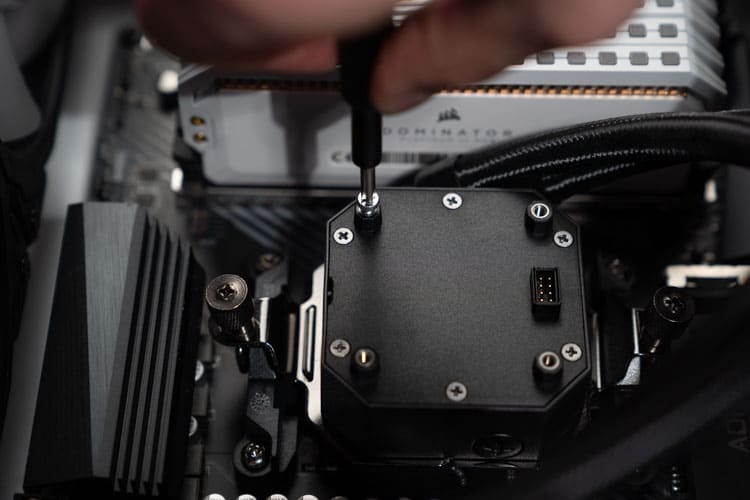

First, you could uninstall the previous plates that sit on high of your pump. To do that, utilizing the included Alan key, merely unscrew the 4 black screws holding on the face plate. You’ll discover these screws are fairly lengthy, and that’s as a result of they’re additionally securing the diffusion plate.

unscrew screws in plate


You’re going to wish to take away this diffusion plate too and strip the pump to its naked enclose. Be sure you unplug the diffusion plate out of your Commander Core earlier than eradicating it. It ought to merely elevate off as soon as all 4 screws are eliminated as per the earlier step.

remove diffuser plate

Putting in LCD improve equipment

With the uninstallation out of the best way, it’s time to put in the brand new LCD display.

Earlier than we set up the LCD display to the pump enclosure, we have to screw the 4 included mounting screws into the holes we eliminated the black screws from within the earlier step. This supplies 4 steady anchor factors for the LCD display to sit down on.

install 4 screws

Now that’s out of the best way, we have to set up the LCD display onto the pump enclosure in order that the female and male energy connectors on each the pump enclosure and the LCD display align. When you assume they each align, press down gently on the corners of the LCD display. Now you could just be sure you join all the connectors to the proper elements.

align and install the screen

Wiring the LCD display

Step one is to route the cables whichever method you want round to the again of the motherboard, all bar the fan connector.

Join the bigger, longer connector to the Commander Core that got here together with your previous AIO cooler. Do that by aligning the gray strips on each the connector and the Commander Core.

connect to commander core

The USB header needs to be related to an inside USB header on the motherboard, so pull that cable by means of the again of the case and loop it behind the motherboard to the USB header to maintain issues tidy.

usb header to mobo

Lastly, join the fan header to the CPU-Fan header on the motherboard. Or CPU-OPT if in case you have one, and the CPU fan is already occupied.

connect fan header

ICUE Commander Core firmware replace.

You might have observed that if you boot together with your new LCD display for the primary time, your AIO shows a warning signal and flashes a deep purple. Don’t fear, nothing is damaged. Your Commander Core simply wants a firmware replace.

corsair error

Your ICUE software program will immediate this replace the primary time you run ICUE with the LCD improve put in.

The ultimate end result needs to be a good looking full-color LCD display that shows absolutely anything you need it to.

corsair AIO upgrade kit cool

Remaining phrase

Corsair makes some improbable AIO coolers, and the New LCD Elite cooler is certainly considered one of them. There’s a worth to pay for such high quality, nonetheless. If you happen to’d favor a extra finances possibility however wish to expertise the options of the LCD cooler, then this improve equipment could be your best option for you.
